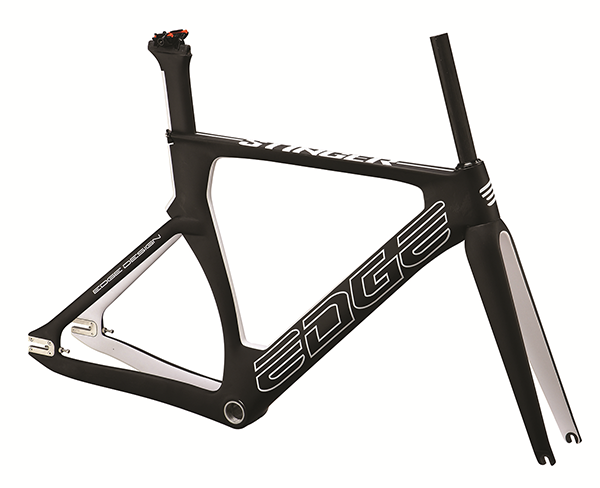

STINGER
Specifications
| Feature | Carbon track frame, include fork and seat post. |
|---|---|
| Headtube | 48/57mm, 1 1/8"-1 1/2" |
| Seatpost | AERO |
| Size | 450/490/510/540/560mm |
| Weight (frame) | 1850g +/- 50g |
| BB Type | BSA/PF30 |
| Seattube | AERO |
| Feature | Carbon track frame, include fork and seat post. |
|---|---|
| Headtube | 48/57mm, 1 1/8"-1 1/2" |
| Seatpost | AERO |
| Size | 450/490/510/540/560mm |
| Weight (frame) | 1850g +/- 50g |
| BB Type | BSA/PF30 |
| Seattube | AERO |

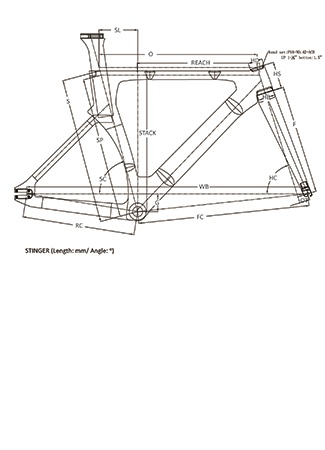

| Size | S | SP | SC | SL | O | HS | HC | F | OT | WB | FC | RC | G | Reach | Stack | HD | HB |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 450mm | 450 | 468.5 | 75° | 121.5 | 505 | 80 | 72.5° | 368 | 35 | 921.3 | 551.1 | 375 | 46 | 380.8 | 463.6 | 48 | 57 |
| 490mm | 478 | 473 | 75° | 122 | 516 | 85 | 72.5° | 368 | 35 | 932 | 560 | 375 | 50 | 387 | 461.5 | 48 | 57 |
| 510mm | 482.3 | 477.5 | 75° | 123.5 | 535 | 90 | 72.5° | 368 | 35 | 951 | 579 | 375 | 50 | 405 | 477 | 48 | 57 |
| 540mm | 497.8 | 492 | 75° | 127 | 557 | 105 | 72.5° | 368 | 35 | 974 | 601.5 | 375 | 50 | 422.5 | 491.5 | 48 | 57 |
| 560mm | 529.3 | 512 | 75° | 132.5 | 573 | 125 | 72.5° | 368 | 35 | 991 | 618 | 375 | 50 | 433.5 | 499 | 48 | 57 |
