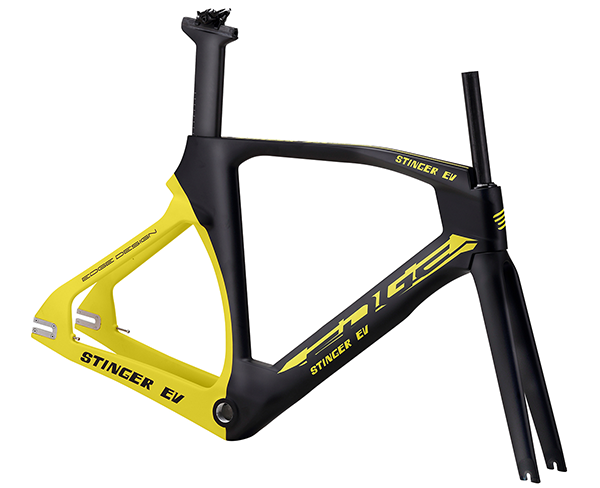

STINGER EV
Specifications
| Feature | Carbon track frame, include fork and seat post. |
|---|---|
| Headtube | 46/46mm, 1 1/8" |
| Seatpost | AERO |
| Size | 510/540/560/580mm |
| Weight (frame) | 1455g +/- 25g |
| BB Type | BSA |
| Seattube | AERO |
| Feature | Carbon track frame, include fork and seat post. |
|---|---|
| Headtube | 46/46mm, 1 1/8" |
| Seatpost | AERO |
| Size | 510/540/560/580mm |
| Weight (frame) | 1455g +/- 25g |
| BB Type | BSA |
| Seattube | AERO |
| Size | O(SC:75°) | O(SC:79°) | HS | HC | F | OT | WB | FC | RC | G | Reach | Stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 510mm | 544.6 | 508.6 | 95 | 72.5° | 368 | 43 | 966 | 596.9 | 377 | 60 | 413.6 | 488.6 |
| 540mm | 557.5 | 520.9 | 105 | 72.5° | 368 | 43 | 979.8 | 610.3 | 377 | 60 | 424 | 498.2 |
| 560mm | 581.6 | 543.2 | 130 | 72.5° | 368 | 43 | 1004.7 | 635.3 | 377 | 60 | 441.7 | 522 |
| 580mm | 598.6 | 559.1 | 145 | 72.5° | 368 | 43 | 1022.4 | 652.9 | 377 | 60 | 454.9 | 536.3 |
