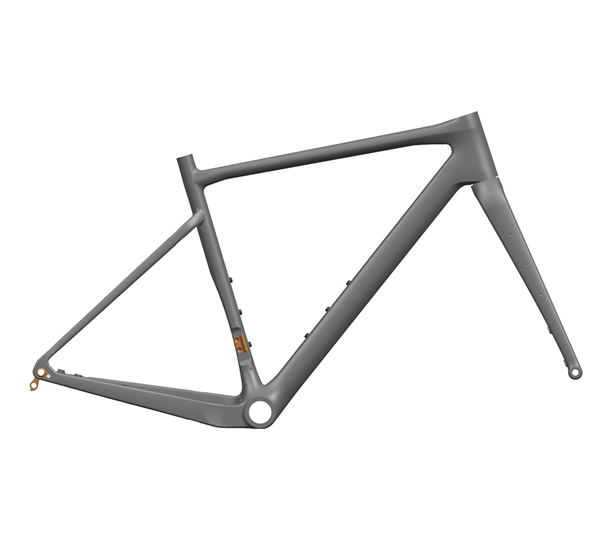

GVX 2.0

Specifications

Feature Carbon gravel frame. Flat mount disc brake. Tire: 700c*45mm. Include fork; fork crown: 36° lower presser. Hanger: Sram UDH.
Headtube 1.5" (FSA NO55R)
Seatpost 27.2mm
Size XS/S/M/L/XL
Weight (frame) 1085g +/- 35g (Size: M)
BB Type T4786
Seattube 31.8mm

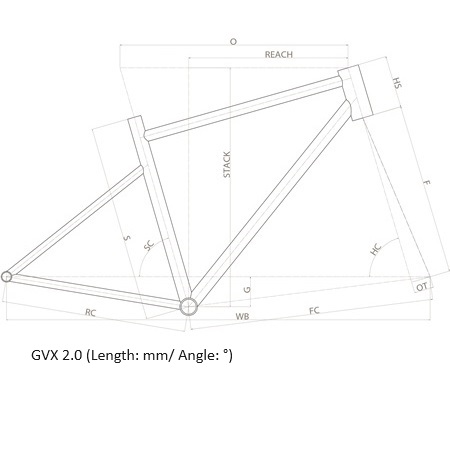

Geometry

Size S SC O HS HC F OT WB FC RC G Reach Stack
XS 460 74.5° 520 100 71° 402 52 1003 590 435 76 372 534
S 480 74° 540 115 71.5° 402 52 1014 600 435 76 382 550
M 510 73.5° 555 130 72° 402 52 1019 606 435 76 387 566
L 535 73° 570 150 72° 402 52 1029 615 435 76 390 585
XL 560 73° 590 180 72° 402 52 1050 636 435 76 402 613
