| Feature | Carbon monocoque aerodynamic road frame, disc brake, DI2 compatible. Include fork and seat post. |
|---|---|
| Headtube | 57/57mm, 1 1/8"-1 1/2" |
| Seatpost | AERO |
| Size | 490/520/540/560/580mm |
| Weight (frame) | 1045g +/- 50g |
| BB Type | BB86 |
| Seattube | AERO |

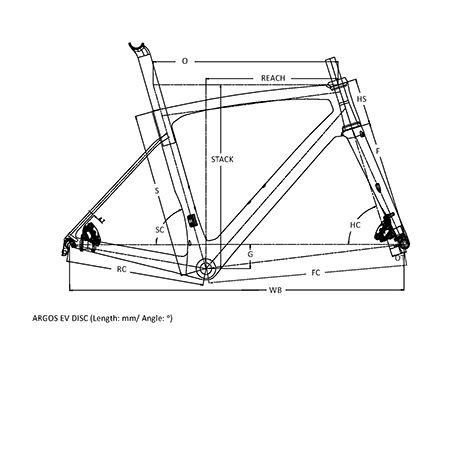

| Size | S | SC | O | HS | HC | F | OT | WB | FC | RC | G | Reach | Stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 490mm | 455 | 75.5° | 508 | 104 | 71.75° | 370 | 45 | 969.5 | 572.1 | 407 | 74 | 376.3 | 510.1 |
| 520mm | 480 | 74° | 531 | 115 | 72.5° | 370 | 45 | 970 | 574.1 | 407 | 74 | 381 | 523 |
| 540mm | 486 | 74° | 543 | 135 | 72.5° | 370 | 45 | 981 | 587.5 | 407 | 70 | 388 | 539 |
| 560mm | 518 | 73.5° | 562 | 153 | 73.5° | 370 | 45 | 989.1 | 592.6 | 407 | 70 | 396.5 | 558.7 |
| 580mm | 537 | 73.5° | 577 | 180 | 73.5° | 370 | 45 | 1004 | 607.2 | 407 | 70 | 403.8 | 584.6 |
