| Feature | Carbon entry road frameset, flat mount disc brake. Tire: 700c*30mm. Include fork. Fork crown: 45° lower presser. |
|---|---|
| Headtube | 1.5" (FSA NO55R) |
| Seatpost | 27.2mm |
| Size | XS/S/M/L/XL |
| Weight (frame) | 990g +/- 30g (Size: M) |
| BB Type | BB86 |
| Seattube | 31.8mm |

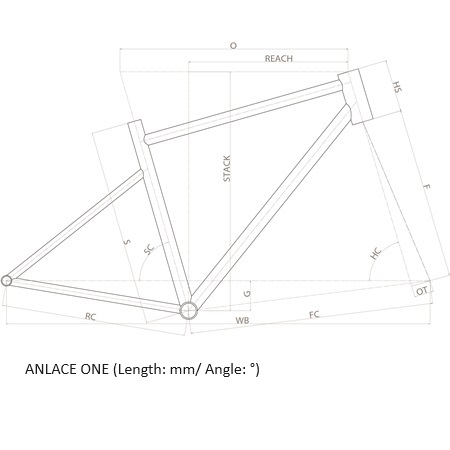

| Size | S | SC | O | HS | HC | F | OT | WB | FC | RC | G | Reach | Stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 430 | 75° | 495 | 105 | 71° | 369 | 45 | 959.4 | 561.5 | 408 | 69 | 360.1 | 503.5 |
| S | 474 | 74.5° | 515 | 120 | 72° | 369 | 45 | 966.9 | 568.9 | 408 | 69 | 370.9 | 521.1 |
| M | 530 | 73.5° | 545 | 151 | 73∘ | 369 | 45 | 978.5 | 580.2 | 408 | 69 | 380.7 | 554.1 |
| L | 550 | 73.5° | 565 | 170 | 73° | 369 | 45 | 998.6 | 600.4 | 408 | 69 | 394.1 | 557 |
| XL | 580 | 73.2° | 585 | 200 | 73° | 369 | 45 | 1018.8 | 620.5 | 408 | 69 | 407 | 600.9 |
